Getting Started with FxCanvas ​

FxCanvas is a high-performance canvas encoding library that allows you to programmatically create images by building a sequence of drawing operations. Unlike traditional canvas APIs, FxCanvas encodes your drawing commands into a compact binary format that can be rendered server-side via API calls.

Installation ​

bash
npm install fxcanvas

Basic Usage ​

javascript
import { Canvas, Color } from 'fxcanvas';

// Create a new canvas encoder with dimensions
const canvas = new Canvas(400, 200);

// Set up styles
canvas.setFillStyle(new Color(255, 0, 0)); // Red
canvas.setStrokeStyle(new Color(0, 0, 255)); // Blue
canvas.setLineWidth(2);

// Draw shapes
canvas.fillRect(50, 50, 100, 100);
canvas.strokeRect(200, 50, 100, 100);

// Generate the render request
const request = canvas.getRequest({
  token: 'your-api-token',
  format: CanvasImageFormat.Png,
  quality: 90
});

// Send to rendering service
fetch(request);

Core Concepts ​

High-level Architecture ​

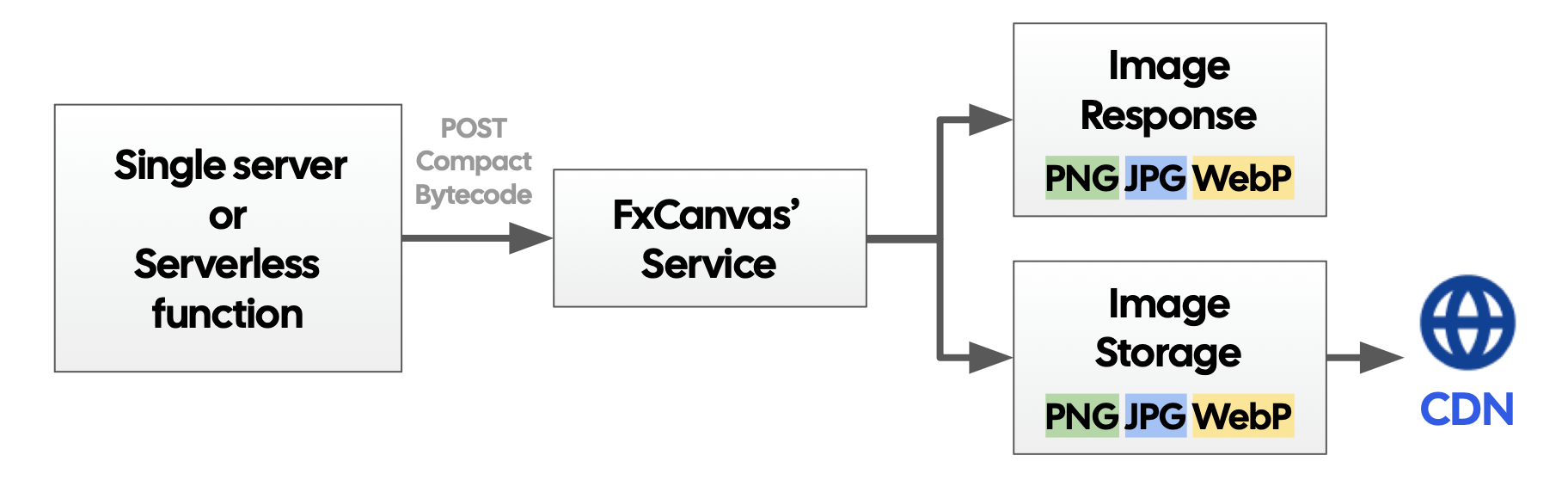

FxCanvas works by encoding commands in a bytecode buffer, which is then sent to our server via an HTTP requests. The upside of doing this is that your systems remain free from any rendering overhead — no node-canvas, no skia, no cairo, etc. In exchange, you won't be able to access intermediate state, because all canvas calls are encoded ahead-of-time, and all execution is deferred. This may seem limiting, but you would be suprised about how much you can do with such simple primitives.

Architecture diagram

By design, FxCanvas aims to provide a request object instance of sorts, for you (the user) to send using whatever HTTP client you desire. This means that all FxCanvas SDKs are free from side effects, and are only concerned with encoding commands into the bytecode.

Canvas ​

The main class that records all drawing operations. It maintains state for styles, transformations, and builds the binary encoding. This is equivalent to the web's CanvasRenderingContext2D.

Colors, Gradients, and Patterns ​

FxCanvas uses dedicated classes for styling:

  • Color for solid colors (supports named colors, RGB, HSV, hex)
  • LinearGradient/RadialGradient for smooth color transitions
  • Pattern for tiled textures

Fonts and Text ​

Text rendering uses FontFace objects for custom fonts and Font descriptors for styling.

Images ​

Images are loaded via the Image class and drawn with drawImage().

Extensions ​

Specialized contexts for QR codes (QRContext) and AI-generated images (Txt2ImgContext).

Rendering Workflow ​

  1. Create Encoder: Initialize CanvasEncoder with dimensions
  2. Build Operations: Call drawing methods to encode operations
  3. Generate Request: Use getRequest() to create an API request
  4. Render: Send the request to get the final image
